RE8-32Modular Static Hydraulic Automatic Brick, Block and Paver Making Machine

Key Specs

Pallet Size
980 x 680mm

Machine Type
Hydraulic automatic

Description
View Specs
Download Brochure
Production / Drops
Warranty

Tough • High Output • Easy Operation • Affordable • Profitable



  • This robust and well-constructed block making machine features hydraulic operation dual-electric vibration motor,  insuring the best compaction for the production of high quality bricks, blocks and pavers that are SABS compliant.
  • Comes standard with a 500L twin-shaft mixer as well as a 2 bin batcher upgradable to a 3 bin batcher.
  • We offer stackers and auto pallet feeders.
  • The moulds are easily inter-changeable allowing the production of a wide selection of products.
  • Comes standard with one maxi, stock or block  mould of your choice. Additional moulds at extra cost.
  • Machine available with facemix for top colour pavers

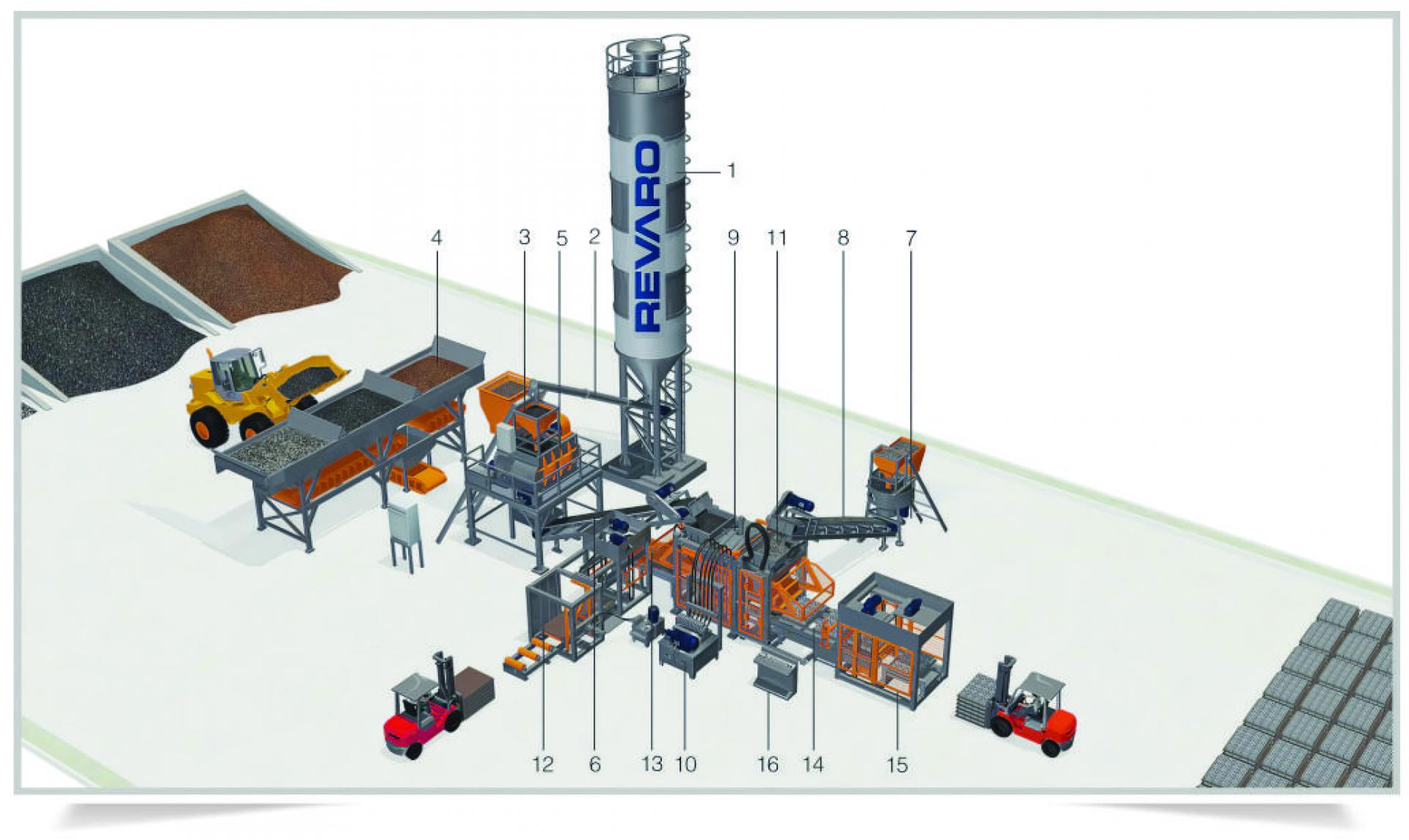

01
02
03
04
05
06
07
08
Cement Silo
Screw Conveyor
Cement Scale
Batching Machine
Concrete Mixer
Belt Conveyor For Raw Material
Pigment Mixer
Belt Conveyor For Pigment
09
10
11
12
13
14
15
Block Making Machine
Hydraulic Station
Auto-color Feeding System
Automatic Pallet Provider
Pallets Feeder
Block Conveyor
Blocks Stacker

PRODUCT SPECIFICATIONS FOR RE8-32
Machine Specs
RE8-32 Machine Specs specifications
SpecificationValue
Move Spec to group
Machine Specs
Dimensions
Pallet Size
980 x 680mm
NoneFeaturedFilter
Move Spec to group
Machine Specs
Dimensions
Machine Type
Hydraulic automatic
NoneFeaturedFilter
Move Spec to group
Machine Specs
Dimensions
Installed Capacity
43kW
NoneFeaturedFilter
Move Spec to group
Machine Specs
Dimensions
Voltage
380V
NoneFeaturedFilter
Move Spec to group
Machine Specs
Dimensions
Cycle Time
18-25s
NoneFeaturedFilter
Move Spec to group
Machine Specs
Dimensions
Pressure Ratio
12-25mPa
NoneFeaturedFilter
Move Spec to group
Machine Specs
Dimensions
Vibration Frequency
2800 - 4800r/m
NoneFeaturedFilter
Move Spec to group
Machine Specs
Dimensions
Machine Weight
6T
NoneFeaturedFilter
Dimensions
RE8-32 Dimensions specifications
SpecificationValue
Move Spec to group
Machine Specs
Dimensions
Overall Size
3100 x 2050 x 2550mm
NoneFeaturedFilter
New Spec Table
Save All Changes
+
Save All Changes
+
WARRANTY FOR RE8-32
Please note that this is a carry in warranty and does not include any service/field support by Revaro technicians, on-site support will be billed seperately, rates available on request.

Register for this product warranty
PRODUCTION SPECIFICATIONS FOR RE8-32 (DROPS)
BrickDimensionsPer DropPer HourPer Day
4 inch Hollow Block
390 x 90 x 190 12 2160 19440
6 inch Hollow Block
390 x 140 x 190 8 1440 12960
9 inch Hollow Block
390 x 190 x 190 6 1080 9720
Interlocking Paver
200 x 100 x 60/80 24 5040 45360
Bevel Paver
200 x 100 x 50 24 5040 45360
Coastal Maxi Brick
220 x 90 x 115 24 5760 51840
Inland Maxi Brick
290 x 90 x 140 18 4320 38880
Stock Brick
210 x 70 x 100 32 7013 63120
Kerbstone
1000 x 300 x 150 0 0 0
