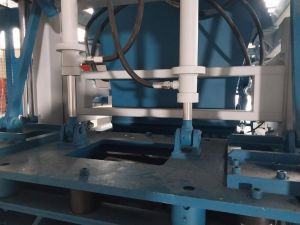

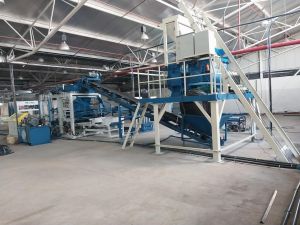

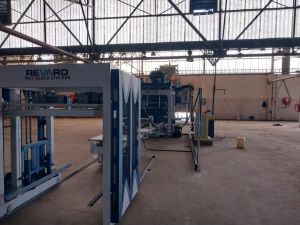

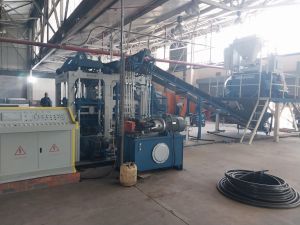

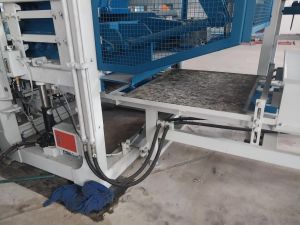

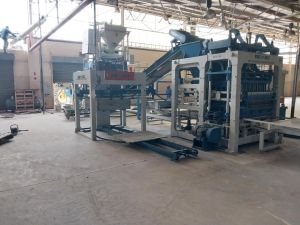

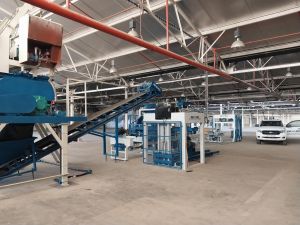

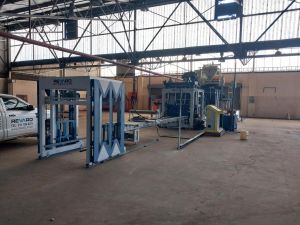

RE14-52Brick and Block Making Machine

Key Specs

Pallet Size
1150 x 950mm

Machine Type
Hydraulic/Automatic

Product Specs

Production / Drops

REVARO RE14-52 - THE MOST AFFORDABLE HIGH OUTPUT BRICK, BLOCK AND PAVER MAKING MACHINE IN SOUTH AFRICA WITH BEST ROI

ISO & CE Certified - Quality Guaranteed
User friendly automatic touch screen control
High frequency vibration - optimal quality
Exact aggregate mixing by batcher
Optimal mixing of aggregates, cement & water
Automatic pallet feeding
Automatic aggregate feeding
Automatic wet block conveyor
Automatic wet block stacker
We offer delivery, installation and training

PRODUCT SPECIFICATIONS FOR RE14-52

Machine Specs

Specification	Value
Move Spec to group Machine Specs Dimensions Pallet Size	1150 x 950mm NoneFeaturedFilter
Move Spec to group Machine Specs Dimensions Machine Type	Hydraulic/Automatic NoneFeaturedFilter
Move Spec to group Machine Specs Dimensions Installed capacity	50.2kW NoneFeaturedFilter
Move Spec to group Machine Specs Dimensions Machine Weight	15800kg NoneFeaturedFilter
Move Spec to group Machine Specs Dimensions Voltage	380V NoneFeaturedFilter
Move Spec to group Machine Specs Dimensions Cycle Time	20s NoneFeaturedFilter
Move Spec to group Machine Specs Dimensions Pressure Ratio	12-25mPa NoneFeaturedFilter
Move Spec to group Machine Specs Dimensions Vibration Frequency	2800 x 4800r/m NoneFeaturedFilter

Dimensions

Specification	Value
Move Spec to group Machine Specs Dimensions Overall Dimension	7680 x 2100 x 3090mm NoneFeaturedFilter
Move Spec to group Machine Specs Dimensions Recommended Workshop Size	25 x 20m NoneFeaturedFilter

New Spec Table

Save All Changes

+

Save All Changes

+

PRODUCTION SPECIFICATIONS FOR RE14-52 (DROPS)

Brick	Dimensions	Per Drop	Per Hour	Per Day
4 inch Hollow Block	390 x 90 x 190	20	3600	32400
6 inch Hollow Block	390 x 140 x 190	14	2520	22680
9 inch Hollow Block	390 x 190 x 190	10	1800	16200
Interlocking Paver	200 x 100 x 60/80	40	9600	86400
Bevel Paver	200 x 100 x 50	40	9600	86400
Coastal Maxi Brick	220 x 90 x 115	36	8640	77760
Inland Maxi Brick	290 x 90 x 140	30	7200	64800
Stock Brick	210 x 70 x 100	52	12480	112320
Kerbstone	1000 x 300 x 150	2	240	2160
